Narishige MF2 Microforge

Description

The MF2 Microforge is a useful instrument which enables production of micropipettes while seeing the tip with a built-in microscope. The MF2 fabricates various kinds of pipette by micro-works of cutting, fire-polishing, bending and forming a spike in needs of experiment. Seeing the tip of pipette in the microscope ensures to fabricate pipette of your preference. The microscope is designed as compact yet robust unit which reduces risk of pipette breakage during the handling. All of fine controls are performed by reliable knobs installed on the microscope. The focusing knob can be switched to the left side of the microscope if needed. The readout of heater level, which is essential for the work, is indicated on display. The heater is turned on and off with foot switch. The LED lamp as the light source allows brightness adjustment from low to high.

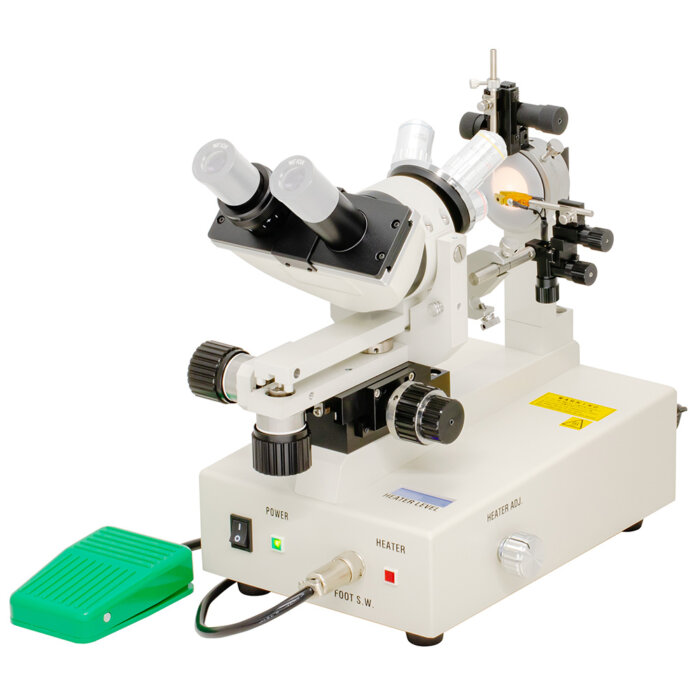

* PHOTO: Eyepiece/objective lens are sold separately. Please select one best suits your needs from designated sets.

Lens Set MF2-LS2 is recommended for fire-polishing electrodes for patch clamp recording that requires tip diameters less than 2µm.

*This MF2 microforge includes a holder for 1.0 mm glass pipettes. Part HIC-1.2 is required separately to use glass capillaries with 1.2mm O.D. HIC-1.5 is required for glass 1.5mm O.D.

Specifications

Accessories Included

• Foot Switch
• Power cord
• Pipette holder
• Hex wrench
• Spare heater (PT-B)
• Silicone rubber gasket (HI01PK01)

Movement Range

• Heater manipulator: X14mm, Y14mm, Z14mm
• Pipette manipulator: X12mm, Z28mm
• Microscope:
Y (Focus-Coarse/Fine coaxial knob) 30mm
X (Swing-Fine control knob) approx. 5°
Z (Tilt-Fine control knob) approx. 3°

Magnifications

• 50x/100x (optional lens MF2-LS1: eyepiece 10x, objective lens 5x/10x)
• 75x/525x (optional lens MF2-LS2: eyepiece 15x, objective lens 5x/35x)

Glass Capillary*
• ø1mm, ø1.2mm, ø1.5mm

Working Voltage
• AC100V ~ 240V, 50/60Hz

Power Consumption
• 13W

Dimensions/Weight
W210 × D300 × H280mm, 5.8kg

Manufacturer: Narishige
Catalog number: N-MF2
Parent Category: Microforge
Application: Micropipette Fabrication
