Economy Pinch Valve Perfusion System

Description

Increase reproducibility with 20 millisecond accuracy

ValveGuard™ technology detects bad valves
Prevent damage to your ValveLink and easily observe problem valves.

Run experiments automatically – even unattended

Microprocessor-based for accuracy and flexibility
Because they lack a microprocessor, competing valve controllers do not offer a USB port, or simultaneous manual and computer valve control.

Manual, TTL (digital input), analog and USB inputs to control valves.
Free USB software for computer valve control.

Features:
*Eight digital inputs and pushbuttons
*Eight bi-colored LED indicators
*USB and analog input
*Event marker analog output
*Spill sensor
*Many manual perfusion features built-in
*CE Marked for sale to Europe

Valve Driving:
*Control 8x 12V DC solenoid pinch valves
system includes four valves – expandable to eight
*Up to 12 Watts (1 Amp) per valve or 24 Watts (2A) total
*Valves are opened or closed rapidly using full power, then held-in
at 1/2 power to prevent thermal transfer to your solutions
*Low noise circuitry for electrophysiology

System Includes:
* ValveLink8.3® controller
* 4x ringstand-mounted 12V DC, two-way solenoid pinch valves
Each valve includes an indicator LED & 5 foot (2 meter) long RCA cables
* 4-into-1 PTFE-inert micro manifold -for bath and Oocyte perfusion
* 4x 35ml syringes
* Tubing for plumbing the system
* Power supply and manual
* One year limited warranty covering both parts and labor

Search this site for “ValveLink” in the description field for additional accessories including extension cables and rack-mounting brackets.

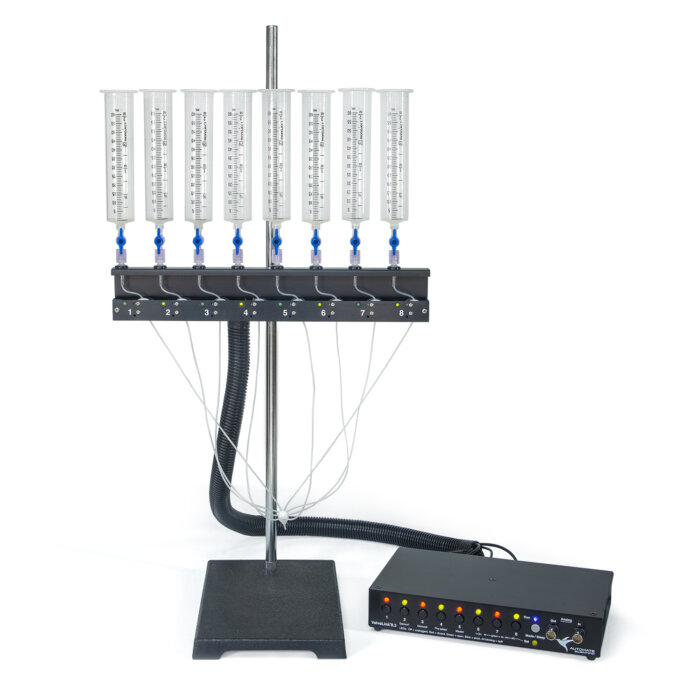

(8-channel system shown in photo, but this is a 4-channel system)

Manufacturer: AutoMate Scientific
Catalog number: 17-21-20
Parent Category: 4-channel systems
Application: Perfusion Equipment

For full web page, please see https://www.autom8.com/perfusion-systems-overview/perfusion-systems

Download a brochure at https://www.autom8.com/wp-content/uploads/2016/06/Perfusion-Systems.pdf
