Sutter Micromanipulator Stand w/12″ Tower w/ Cantilever

Description

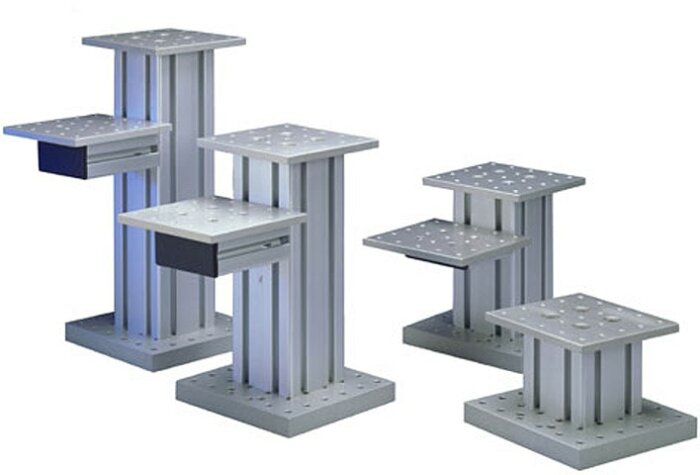

The MT-71 series of stands are sturdy, stable, and extremely versatile for mounting components for a variety of research applications. They were designed for placing our heavy Huxley-style micromanipulators adjacent to any microscope. We found them to be so useful and adaptable that we also use them for mounting other items such as optical components.

The stands are based on a rigid extruded aluminum tower which is available in 3 inch increments up to 12 inches. The tower is mounted on a sturdy 3/4in thick aluminum baseplate and then fitted with a 5/16in thick aluminum mounting platform. In the MT-71 series these systems have an adjustable height cantilevered side platform for added versatility. The tower can be center or edge mounted to the baseplate for accommodating various spatial layouts. Rows of 1 inch and 25mm centered clearance holes are provided in the baseplate for attachment to tables. The mounting platforms have tapped 1/4-20 mounting holes on 1 inch centers.

The stands are available in sets, or you can order individual components separately to meet your specific requirements. Custom heights can be made to order for an additional fee. To securely fasten the MP-85 Huxley style manipulator to the mounting plates, please order the manipulator adapter plate at the time of purchase. Larger baseplates or mounting plates are available upon special order.

SPECIFICATIONS > MT- 7 0 S E R I E S

Dimensions of Baseplate 6in x 6in x 3/4in, 153mm x 153mm x 19mm
Dimensions of Mounting Plate 5in x 5in x 5/16in, 128mm x 128mm x 8mm
Total Stand Height 4 1/16in to 13 1/16in, 104mm to 333mm; depending on configuration
Weight 3lb 11oz to 8lb 5oz, 1.7kg to 3.8kg; depending on configuration

The MT-71-12 includes 12 inch tower, baseplate, cantilever assembly with mounting platform, tower endcap and fastening hardware.

Manufacturer: Sutter Instruments
Catalog number: SU-MT-71-12
Parent Category: MT-70 Mounting System
Application: Sutter Manipulators

For full web page, please see https://www.autom8.com/sutter-manipulators-overview/mt-70-mounting-system

Download a brochure at https://www.autom8.com/wp-content/uploads/2016/07/AM-Manipulators.pdf
